Showing results for tags 'leds'.
-
I am in the middle of changing out the side reflectors for LED's. Now the lights i bought from JPCycles.com came with two wires...a yellow and a black. I have read the other threads and I am curious about something... When i was messing with the wires on the bike, i discovered if i hook one of the wires to the running lights and the other to a turn signal, i get a running light that will flash when i hit the turn signal. Can someone explain why/if it would be bad for the electrical system if i hooked the wires up this way? -
Here's my dilemna...I purchased the Trunk spoiler for my 08 RSV (haven't installed it). The general feedback here is that the lights in the spoiler aren't all that bright. Then the thought hits me....LEDs! Has anyone done a mod to the spoiler that replaces the standard lights in the spoiler with some "super brite" LEDs? I'm willing spend a little $$ to get a flexible bright RED LED strip and work through the installation process. What kinds of things should I consider when I start down this path? Are the lights both running lights and brakes? Are there any special considerations for using LEDs in a dual-intensity situation like this? Or am I all wet here? Certainly don't want to lay down track if someone has already blazed a trail here!
-
I had purchased one of the replacement turnsignal/brakelights for the reflector on the travel trunk on my 89 VR and never was happy with how much light the 4 194 bulbs put out for an additional brake light. I liked the idea of it up higher and more eye level with the cars behind me but just didnt do the job in my mind in getting their attention. So I have been on the lookout for more lighting for it for a while. I finally took the plunge and tried out some 12vdc strip LEDs in red. These are what is called a 5050 LED with 3 sources of light per LED housing and has 300 LEDs per 5 meter length. I ended up filling the rear of the housing with over a 100 leds and I must say it is now bright and noticeable. I purchased them off of Ebay for $26.00 shipping included from a China location. Here is the seller and he has lowered his price it appears. http://www.ebay.com/itm/Red-Waterproof-5050-300LED-5M-60LED-M-Light-Strip-12V-IP65-LED-LAMP-Car-Auto-/120894815654?pt=US_Car_Lighting&hash=item1c25e47da6 I feel that the light is just as bright if not brighter then the stock brake light and comes on quicker then the stock brake light also. I am thinking the next step is to try a modulator that has the lights at 33% power to work as a taillight and then flashes the LEDs for a bit and then goes solid. I really want to get their attention of those behind me. Here are some pictures of the setup. Let me know what you think. File 1 & 2 is how I set them in the housing. The LEDs are waterproof and have 3M sticky tape on the backside. They are able to be cut every 3 LED and have solder pads to attach wires to them. File 5 is the LEDs on but the red cover is not installed yet. File 6 is with the cover installed and the LEDs on and the overhead garage lights on. File 7 is with the cover installed and the LEDs on and the overhead garage lights off. Thanks Rick F.
-
I removed the old Harley lights off the back of the bike this afternoon. I installed them last year, and since putting them on, I have had to replace two battery's. Okay this is the question Strip lights are LEDs ( Diamond R's) the Harley lights are 1157 bulbs, I ran them together to the brake lights wiring at the license plate housing. Was that the wrong way to wire them? Did I need a Converter for the LED's?
-
Here's the scoop: 1985 Venture Royale 148,000 km New stator and RR AGM battery showing 12.36 volts, sitting for 36 hours All lights are LEDs except for headlight, signals and driving lights. LEDs are wiring in to the running light circuits at random, and brake lights are LEDs as well. Outside temp about 10 degrees C or 50 degrees F Here's the gremlin(s) Wayne and I were out for a ride on Wednesday night. Rode for about 1.5 hours then stopped for coffee. Wayne said that one of my LED banks in my trunk was flickering, so after coffee went out to check it out. I turned on the key to light up my life and low and behold, NONE of the LEDs were working. I tried again but still nothing. So I fired up the scoot and revved it up, blink, blink and all the lights were working. Turned everything off and had the same scenario. So I drove home figuring to check it out and fix the issue. Now I don't have any issues at all,,,,can't get it to repeat. Did I leave the gremlins at Timmies, or are they hiding somewhere?
-
What do ya think? Do ya suppose this would help get a cager's attention? I already build custom sequential LED turn signals for the rear that some of you have seen. I'm now finally getting around to putting LEDs up front. I thought maybe this would be even more noticeable. Has anybody else tried one of these? http://www.customled.com/products/flasher_relay/clrelaypro.wmv http://www.customled.com/products/flasher_relay/flasher_relay.htm#LayoutRegion2LYR Thanks, Bill
-
The maintenance is done! Thanks guys for all of the help. My Rick Butler seat came in today to round off the package. I replaced all of the broken plastic. (no more tie-wraps) Changed the starter/thermostat/o-rings/antifreeze Balanced the carbs Repaired the CLASS system Changed the oil and filter Installed a remote garage door opener (works off of the high beam switch) Installed brake activated flasher LEDs in the front and rear lights (This may get me in trouble) I may still do Progressive springs. (probably will) Bring on the nice weather!
-
Well I bought the AZ LEDs with the intention of putting them on the reflectors. But then I just couldn't get passed the "boo-boo" on my fairing. So I decided to cover it up and add the red LEDs to the side of the trunk. This way they are higher than the reflectors anyway. Got started tearing into it and just couldn't quit...... To get power to them I tapped into the relay for my passing light and ran the wire for the rear lights from there too. I also installed a separate fuse for the new LEDs Oh and this was a REALLY unusual repair for me, no blood was spilled!!!
-
I would like to convert Regular Bulbs to LEDs. For starters 1) Brake Turn Signals Can I use white LEDs or do I need to get colored LEDs? 2) I have a trailer in which I purchased a set of new LED lights. (Brake, Turn Signals, Running). Can I hook them up straight or are there considerations? 3) Dash Lights Are they all the same size? Same ? regarding color. White or respective color. Will some be too bright? 4) Did I miss any lights 5) Is there a better source regarding quality and price than the local auto store? 6) Are there any draw backs to this?
-
I finally got the LED's installed on my V Star. They were given to me at Vogel by Infonaut, aks Peter Harris from Philadelphia, Pa. Peter is going to be making up sets for bikes and hopefully selling them, and has also expressed interest in doing a maintaince day for LED's here in Newnan. If you contact him I am sure he can help you out big time. He gave me enough to do over my engine and then some but I only had enough connectors to do on length. That will likely change in the future as soon as I can buy some more. I posted some pics here and a short vid of them in action. These suckers are bring so good thing there is a dimmer on the remote.
-
hi all glad i found this org. this my first post. i have a 83 venture and i want to add some rear running lights and a second licence plate flashing brake light so the 4 wheelers can see me. i want to go with leds do you think they wont draw to much from the electrical if i just splice onto the tail light wiring? thanks for any help
-
The 5 wire to 4 wire adapter that I installed has been working fine with the H/F LED light kit I put on the H/F tag along, earlier this year. This week end I added red LEDs high on the rear of the trailer for additional tail/turn/brake lights. I also added red and amber LEDs on the corners. They are hooked up with the tail light circuit and work fine. My problem is with the brake/turn circuit. The new red tail/brake/turn LEDs are wired in parallel to the original tail lights. When I turn the ignition on, the low intensity for the original tail lights and the new addition tail lights come on low intensity as they should. If I press either brake pedal, the existing tail lights go to high intensity and the new ones do to. If I turn on either turn signal the proper original turn signal blinks as it is suppose to, but the "added" light does not. If while the turn signal is blinking I press either brake, both original brake lights go to high intensity and the blinking stops, although there is a slight intensity oscillation in both sides. The converter I have is not a "Hoppy" brand. I'm wonder if The additional LEDs have exceeded the capacity of the adapter? I got this one at Ace Hardware. Where have any of you found a "Hoppy"? I need to get this fixed BEFORE Thursday, as that is when we need to head out for Vogel. And if this wasn't enough, while changing the oil this afternoon I noticed an oil drop on the bottom of the rear shock!!!
-
OK...Finally got a chance to get a short video of the new LED tail light and other LEDs installed from Custom Dynamics. Also added a strobe unit to strobe all LEDs on the back end. Movie is not that good but I think you will get the effect. That LED tail light is so bright when you watch it strobe...you look away and see red spots [ame=http://www.youtube.com/watch?v=QooBZjPbB78&feature=channel_page]YouTube - Venture Strobe[/ame]
-
I've had my Voyager Kit for a while now (got it the week before Rolling Thunder), and we love it. When we bought the kit we did not order lights because I don't care for the stock Harley lights they use. My friend has a Voyager kit with lights on his RSTD, and because the sun washes them out, they are useless. What I'm looking for are lights that I can mount on the fenders, but I don't want to do a lot of sheet metal work. Drilling a couple of small holes is fine, but I don't want to have to perform major surgery. I would like to use LEDs, but I'm not opposed to incandescents..... Any input will be greatly appreciated... BTW: I've looked on Super Brite LEDs dot com, and their lights require cutting major holes in the fenders...... Thanks.
-
I recently installed a voltage meter. It has a stock Stator. It has a non AGM battery. My question is what should be the approximate proper reading when: 1) At an idel of about 900 rpms 2) At running speed of say 65 mph in 5th gear 3) After a 24 hour charge with a 2 amp battery charger. What mininum voltage reading should I be concerned with. My 89 VR has the standard lights with the addition of a set of Wallmart Plattium Burners (55 watt). I heard many postings to swap out to 35 watts, with a couple that says that 55 watts are ok. I thought that if I knew the proper voltage reading that the reading would determine if I need to go to the 35 watts. I do have several LEDs on. 4 Turn signals, 2 additional stop lights all from Custom Dynamics, but being that they are not all the time and they are LEDs thought they would have mininum inpact. -
Tonight as I left work at 2 AM my HID went out. I didnt notice it right away until I hit a real dark stretch of road. It was then I realized that I was riding with only those dreaded LED driving lights. I cant believe how much illumination those LEDs put out. It was almost like riding with a stock headlight. I saw a nice clear band of light in front of me. Those LEDS really lit up the road. As far as the HID headlight goes, this has happened a few times before. I sent Canadian Cruiser Customizing an email and requested a replacement ballast since its still under warranty. Ill see what response I get. I cant have that light go out on me at night any more.
-
This looks interesting. Would have to change the connector but .... Has 34 Leds in it http://www.iowa80.com/DirectionsWEB/webcart_productDisplay.php?itemid=203560&itemdesc=7%22+Headlight+with+LEDs http://www.iowa80.com/DirectionsWEB/client/images/l177330.jpg http://www.iowa80.com/DirectionsWEB/client/images/l177329.jpg
-
1) 89 VR. I installed 2 Amber LED Night Rider turn signals from Custom Dynamics for the Front. I followed Instructions and connected the three wires from each LED to the respective standard turnsignals. The LED wires were spliced in within about 1 foot of wire from the standard front turn signal bulb. I used a circuit tester to verify that I'm splicing into the correct wire. After the installation was completed the LED turn signals all worked as it should. The LEDs do not have parking light capabilities, they are just turn signals. When I put the 4 way flashers on the LEDs were not working. At first I was puzzled for I was expecting the 4 way flashers to activate the LEDs. Later my thoughts are that the 4 way flashers must activate just the stock parking lights rather than the stock turn signals. Maybe you all knew that but I didn't. Please correct me if needed. However when I put the 4 way flashers on and then switch on the turn signal eithor directions, both the LEDs work inconjuction with the standard turn signal in 4 way flasher mode. There's probably an explaination for this. So if someone can put it in laymen terms I'd appreciate it. The 2nd issue. 2) A week prior I installed a set of Walmart Platinum Burners with a switched relay powered by the Accessory fuse box screw. The lights worked great. So today after finishing up the LED installation I tried all various combinations and this is what I've encountered. The LED turn signals will not work with the Platinum Burners. a) If I have eithor turn signal running, then activate the running lights the LEDs stop. b) When I have the 4 way flashers on with the turn signals on also to activate the LEDs in 4 way flashing mode then turn on the Platinum Burners just the LEDs stop. The standard 4 way flashers work. c) When I have the Platinum Burners on first the LEDs will not work in any combination of a) or b) The bike has been stitting for 1 month with a 2 amp auto shut off motorcycle charger. The Bike is fairly new to me and so I have not had the battery checked nor the Stator checked. My 89 VR has 25K miles. Oh yes I've also installed a set of Stebel TM80 Magnum Horns on a seperate relay and they work great. I do not understand the issue I've encountered with the LEDs and Platinum Burners. I did all my testing with the engine off. Your thoughts please.
-
[ame=http://www.youtube.com/watch?v=beqi-UuiXq8]YouTube - flash arrow.AVI[/ame] Above vid of my design for arrow led turn signal At first I thought I would PM the only other member I know here who has experence in electronic design, Dingy, to see if he was interested in collobrating in my project, as he had stated in another post he was working on simular, then I thought this would likely be of interest to others, especially the final result, so I will provide my progress here. My plan is to replace lighting on my Venture to LEDS. Many places to buy plug and play, but I thought I would like turn arrows, and started experimenting I set my conditions for 1. turn arrows at 4 corners to sequence both front and rear on left or right as switched 2. turn lights also marker lights 3. turn lights also 4 way hazards 4. Minimum parts count/$ 5. also design trim lighting/brake lighing/passing lights from LEDs In my favor I found a source for cheap LEDS, buying 100ea 5mm for about $5 including shipping. For testing I have bought 100 each, Blue 5mm 6000mcd 20-50mA 3.0-3.4fV, Red 5mm 4000mcd 20-50mA 2.0-2.2fV, and Yellow 5000mcd 20-50mA 2.0-2.2fV. All have narrow view angle of 25-30deg and are very bright see straight on, not so much from an angle. Item 5 above is pretty straight forward, so started design of flashing arrow first. PDF is of my circuit so far, I am working on breadboard so changes are easy. Circuit is based on HCF4094 8 stage shift registar driven by high voltage 555 clock called TLC555. The shift registar outputs are driving NPN transistors, but due to high part count I chose transister array CA3083 with 5 each independent transistors capable of 200mA each. I chose my IC's purposly as high voltage (18V) as opposed to TTL(5V) to avoid parts count in voltage control for our 12-14 volt MC systems. Leds are arranged in series arrays. Had wanted to only have 1 major control circuit, but will need two , for left and right. Plan on 1 central control box with multiconductor wire to each corner light. As current to each segment is only 20-30mA this is well within capability of telco 24ga inside wire such as CAT5, and 4 pair wire gives 8 conductors for 8 chevrons, using main 12V already at each corner. Flashing arrow works great so started designing item 3 above. A little experimenting accomplished lighting all LEDS in sequence till all lit then hold, then a timer to output enable of the 4094 will flash all lit LEDs as in 4 way flasher. Then I started working on 2 above, meaning I thought I would need to dim the turn signals and have them fully lit to act as marker lights. I designed a 555 based pulse width modulator which will adjustable dim the LEDs, but at a noticable dimness as opposed to fully lit arrows, I think the LEDs are too dim and can't seem to find a happy medium. This is where I am looking for input. now I am thinking I need to have all LEDs lit full bright for marker lights, and when turning, only turn side will change from full bright to flashing arrow. also considering ordering White 18000mcd leds, but high fV will require changes in array. Weclome all questions, comments, suggestions
-
Practical (and cheap!) trunk courtesy light
Guest posted a topic in Royal Star Venture Tech Talk ('99 - '13)
For anyone in Canada who has an XSCargo store near them... they have a really great deal on those small LED pucks. They are selling the First Alert 3-packs for only $7.99. I put one in my trunk and it works like a charm. The two-sided tape isn't that great though, so i used a bit of 5-min Epoxy to hold the base on. They use AAA batteries and have 3 bright LED's which should last for months of use. Changing the batteries is a breeze and the light just turns and comes off the base and best of all, it matches the inside of the trunk perfectly. Best of all is I have 2 spares to use down the road as well !!! Here's a pic of how it looks in my trunk... http://www.ridecanada.org/photos/trunk_light.jpg -

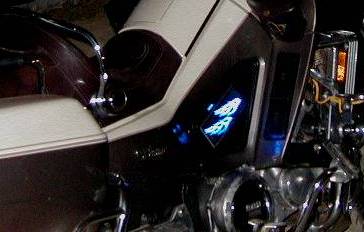

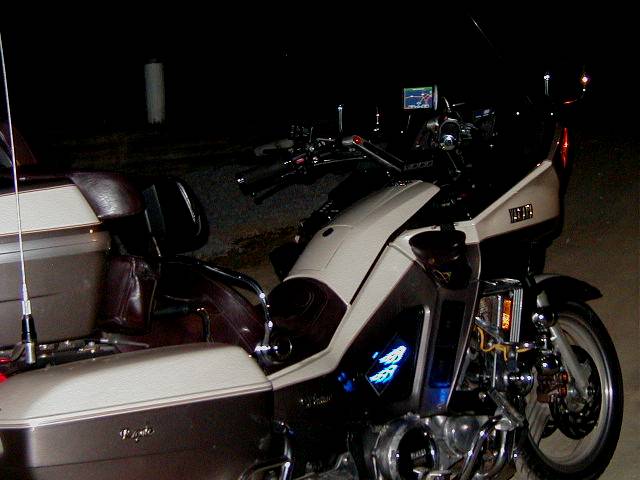

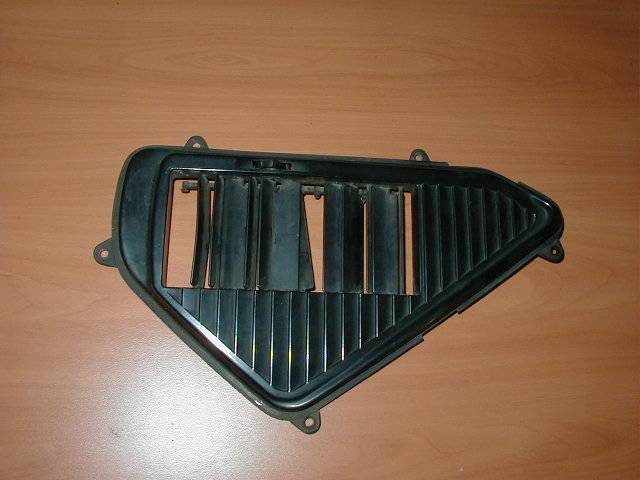

As most of you know, I have been laid up after my back surgery. Well, I am getting around a bit better now, and have been putting in the shop although I am still not allowed to officially work on motorcycles yet. I took a set of louvers from the side covers of my 87'VR and installed the Sheet Metal inserts I had gotten last year. (A BIG Thanks To Randy For The Inserts) I mounted a string of blue LED's in the inserts and put a back on them to protect the LED's from the heat and I also installed a string of blue LED's in the front air scoop as well. Take a look at the pics, and if you have any questions, please feel free to ask! Earl
-
I know this is off the wall..but curiousity has the best of me. For those that are, can u see the (color) blue led's on patrol vehicles or are there any other colors that would are more visible, like red or yellow? Forgive me for my ignorance on the subject...I was thinking of adding some yellow led's in addition to the blue lights to back of my unit for doing details on the interstate, etc.
-
.....is worth over doing. Or the title could be, yea but it's still white. Anyways, my new to me low $$ trailer cleaned up pretty well but it was still white. I thought that it should probably match my red over dark red scooter a little better, and I also figured that I just didn't have enough money into a toy that I may not even use that much. Sooooo. I picked up two new tire/wheel combo's and checked/re-packed the wheel bearings. Then I noticed that the chrome on the coupler was looking a tad shabby. Another trip to the trailer shop solved that little problem. I had also went through all of the wiring and rearranged the tail lights from red running/stop with amber turns signals, to all four red running/stop/turns. (thanks for all of the help guys) After the light re-wire I decided that all of those conventional lights were pulling a lot of power and leds are the way to go. One more trip to the trailer store (and way too much money lighter) and I have the full compliment of tail lights/clearance markers/license plate leds awaiting install when the paint is done. 60 total leds. Well, you can't go that far without going even further, so the two tone paint to match the scoot is in process. It was a huge pain getting the factory graphics/pin stripping off. All of the rust was ground (grinded?) off of the trailer frame and a couple of coats of Rustoleum applied. Did I forget to mention the seven tie down loops that are going inside to make it easier to keep things inside in place? Maybe I should start working on a design for a cooler carrier and a spare tire bracket??? I really hope I don't dislike pulling a trailer behind my bike. I've never pulled one with two wheels before. pics so far
-
$6 LED's and $13 S&H. The pictures are a little blurry but I think you get the picture. Anyway I'm satisfied and it didn't break the bank.
-
Added a few lights, so thought I would show her off.Led strips under tank, trunk and saddle bags. Driving lights mounted on brake calipers. Tear drop leds on rear bags turn/tail,rear brake light,andbrake light bar on back of trunk.Just can't leave nothing alone.
