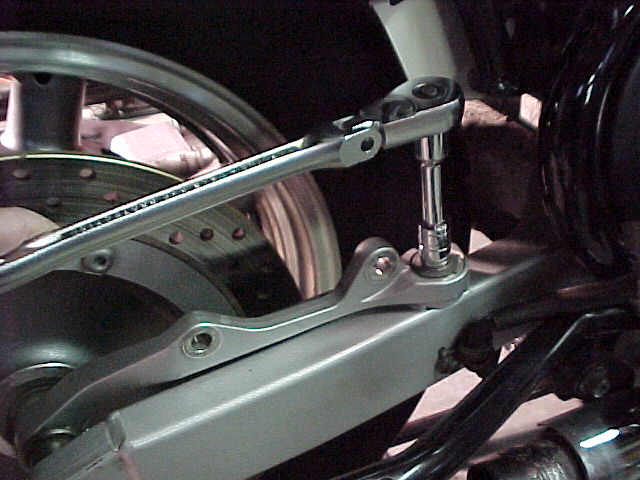

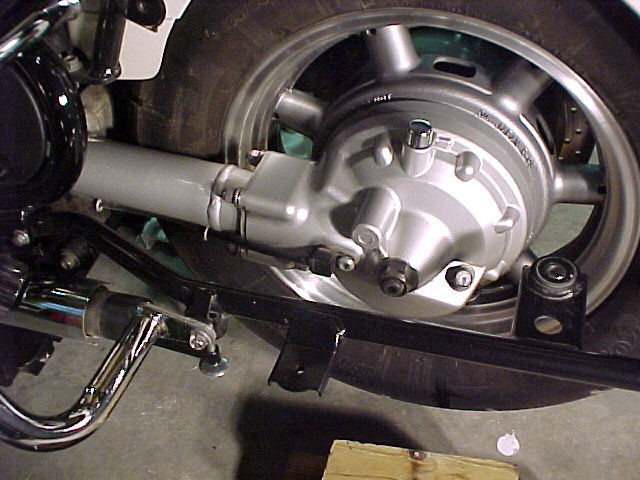

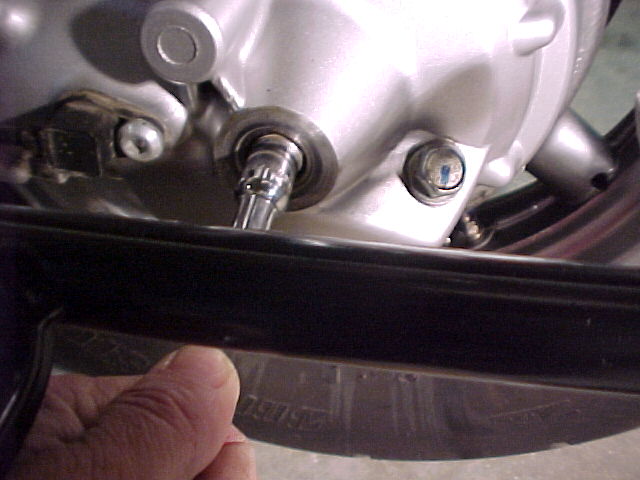

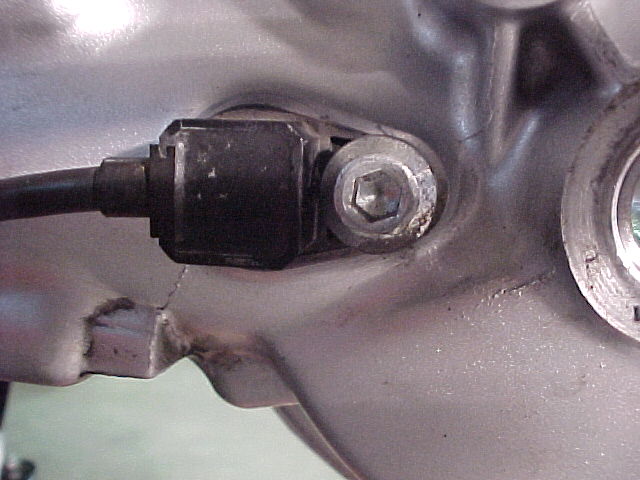

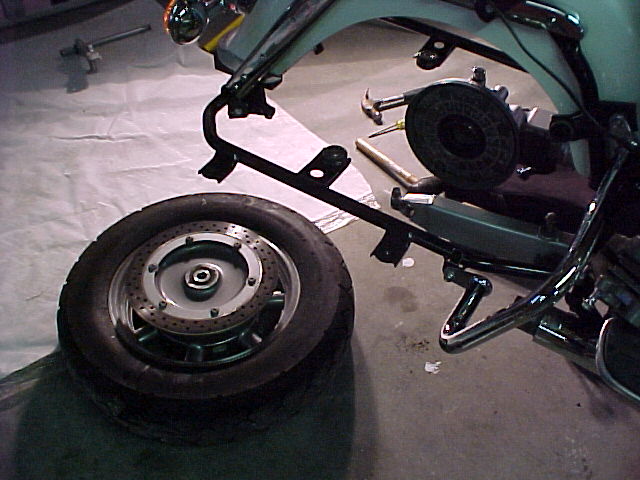

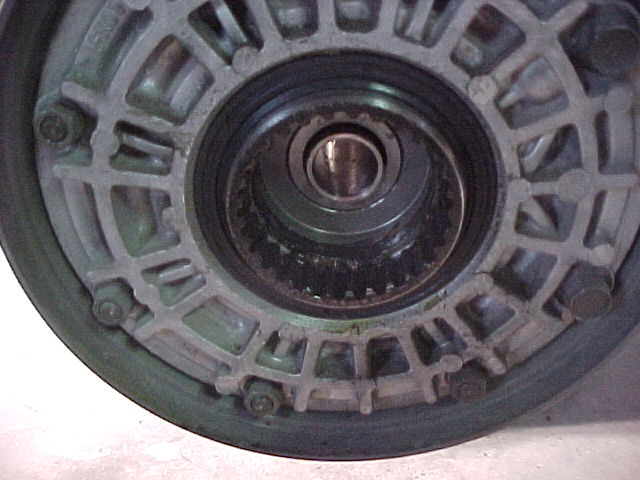

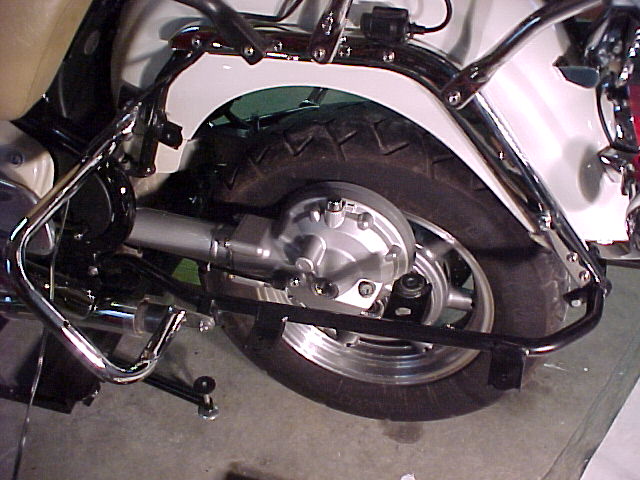

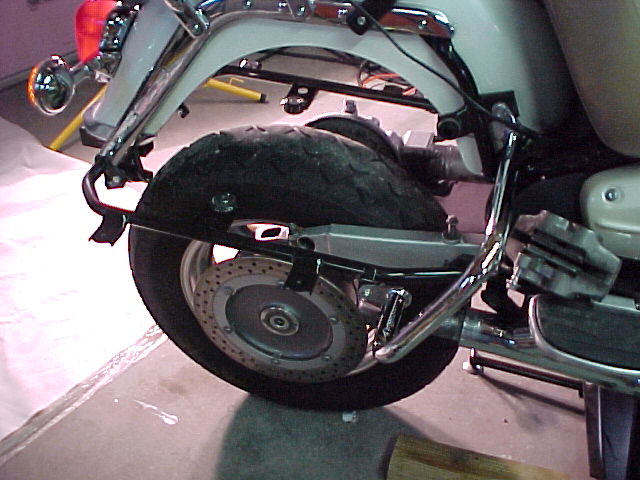

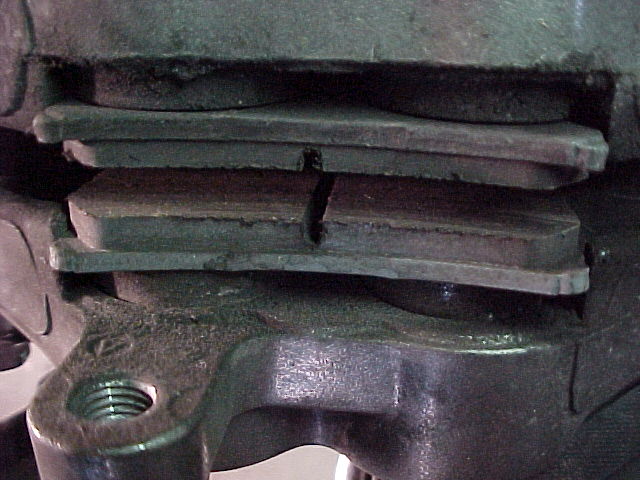

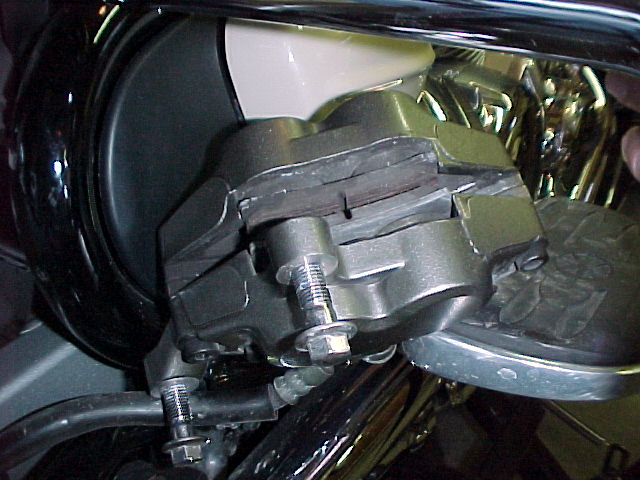

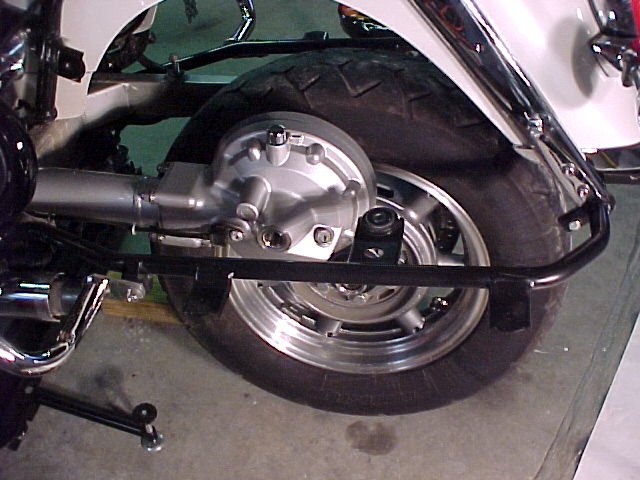

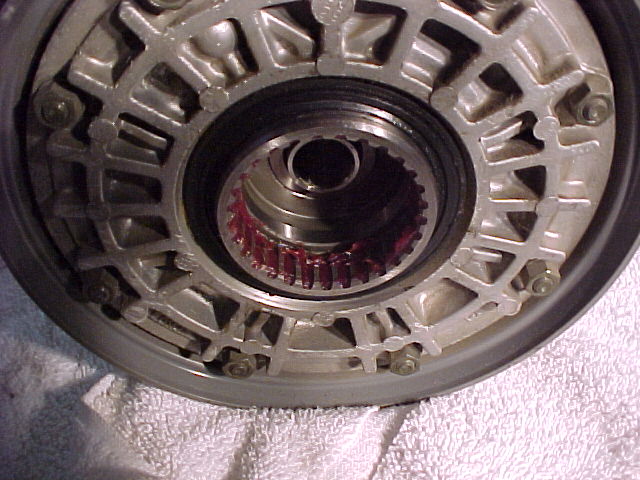

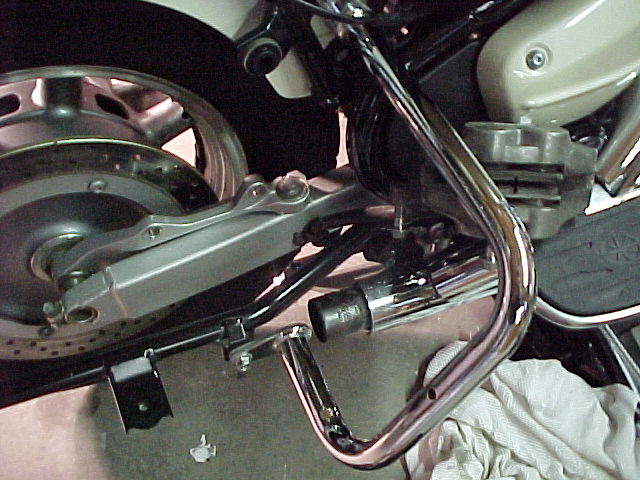

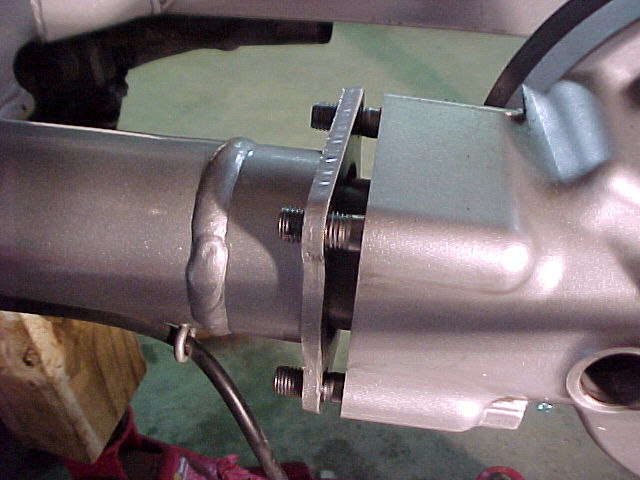

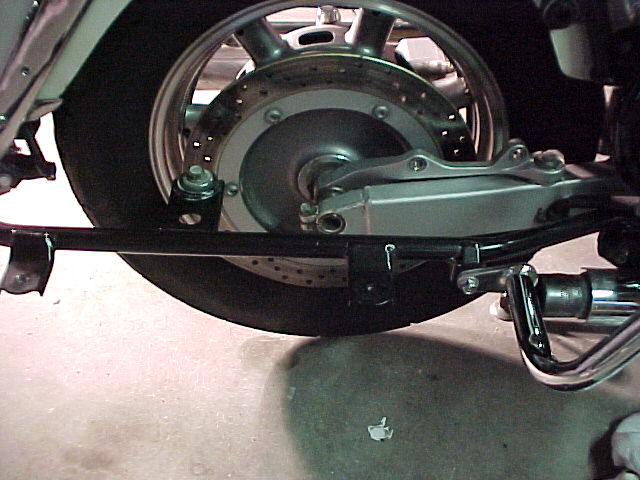

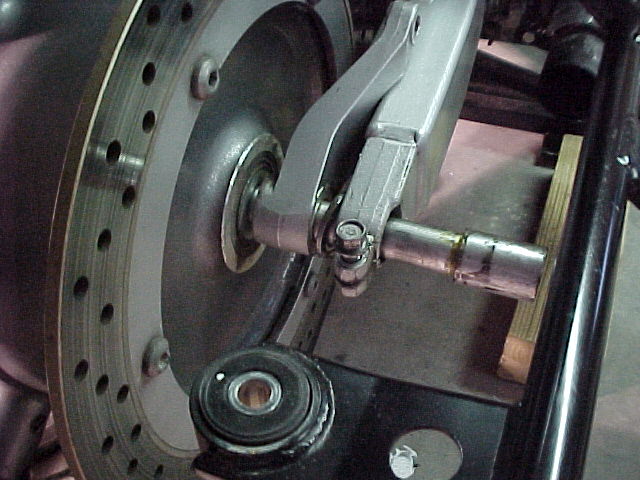

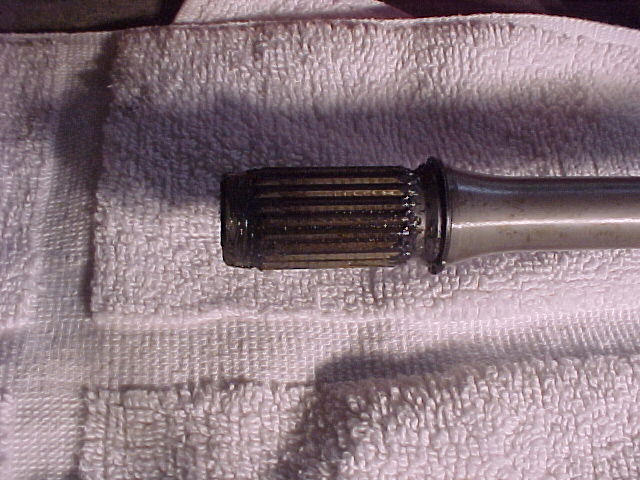

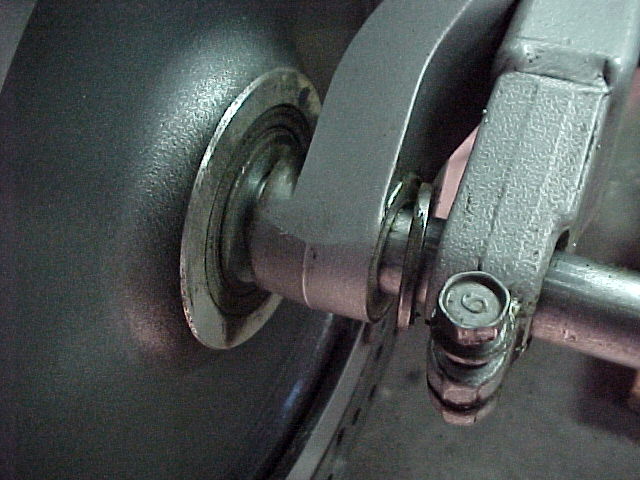

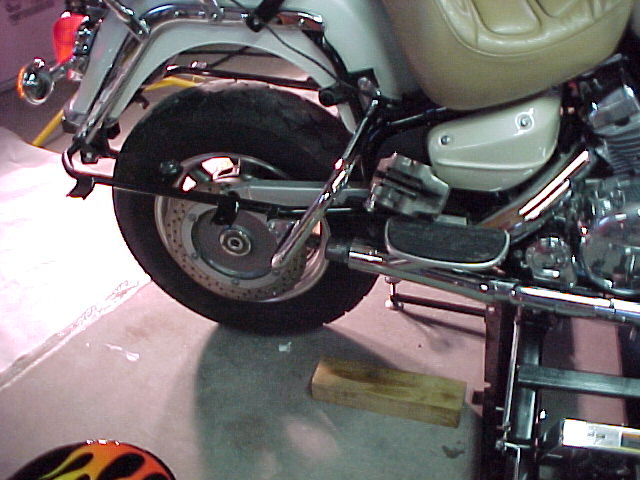

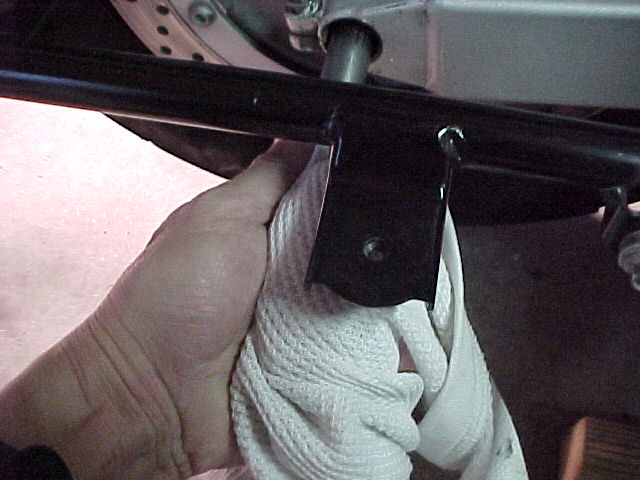

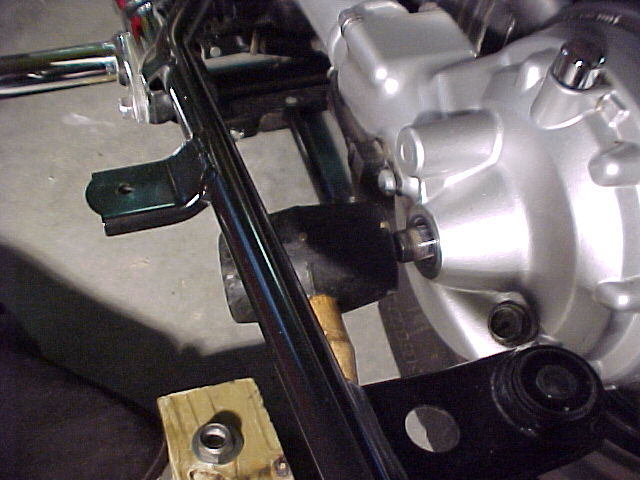

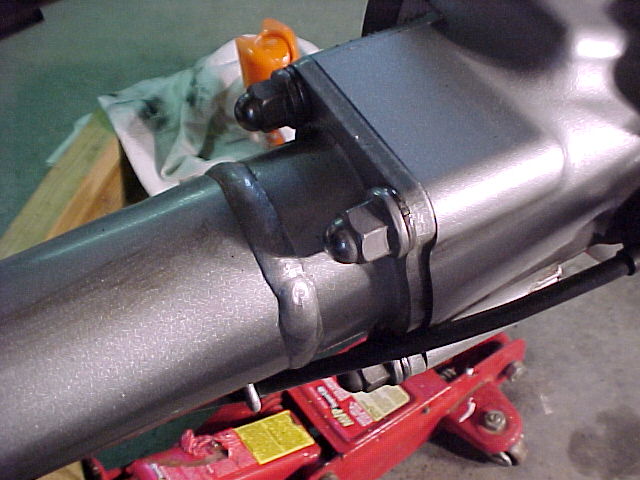

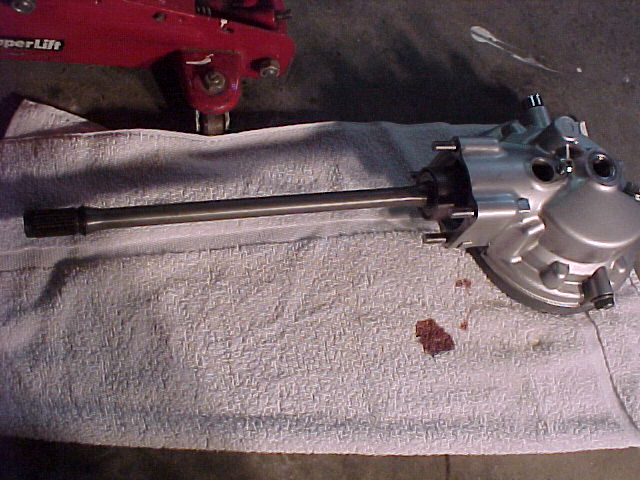

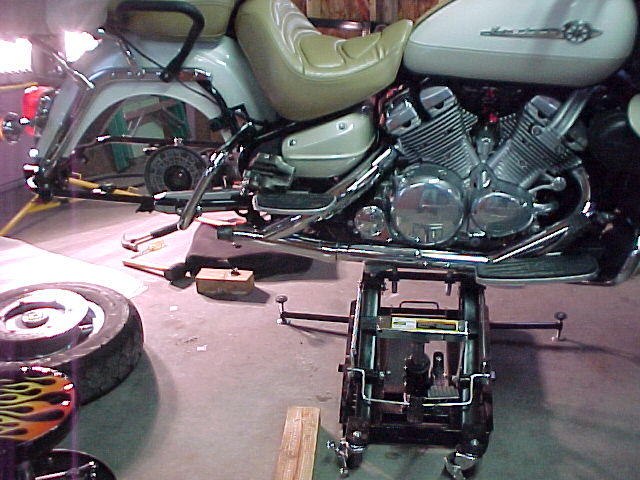

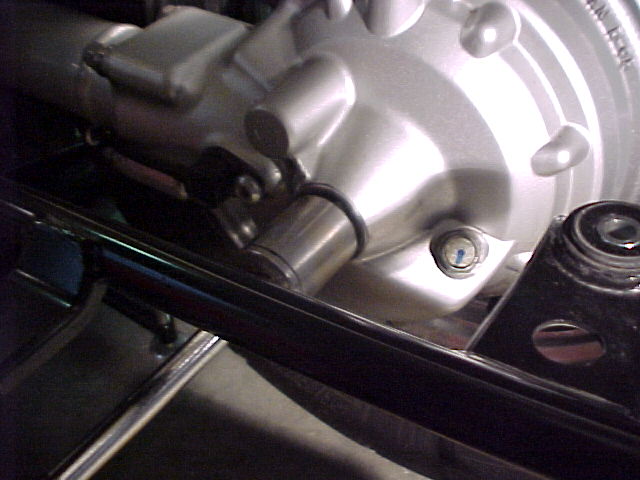

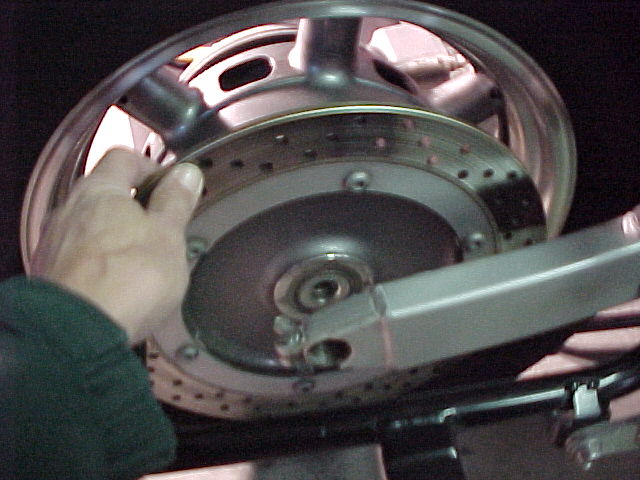

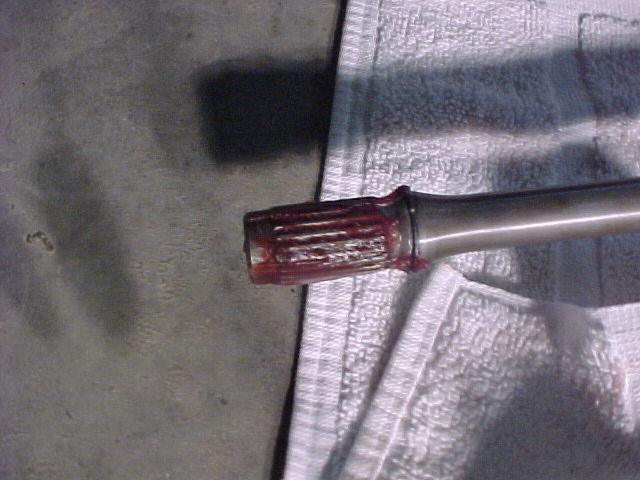

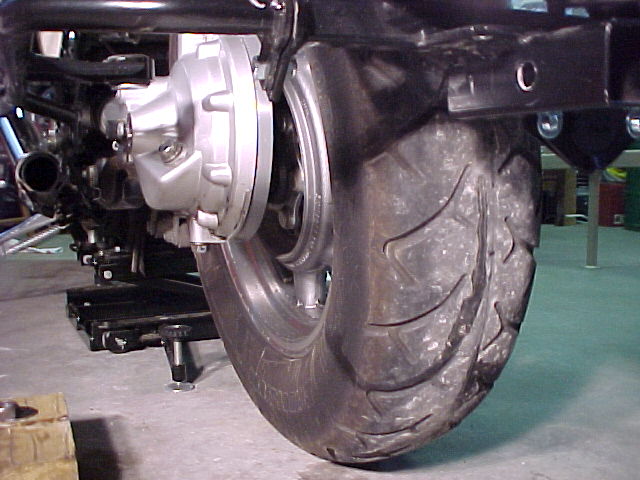

Freebird Posted August 22, 2006 #1 Posted August 22, 2006 (edited) Thanks to Cougar for this excellent write-up FYI- Picture's of Rear Tire Removal Well, With all the searches and Folks Changing out there REAR TIRE. I learned A Lot today from you guys! And I said to myself ** SELF ? ** why not try this and takes some pics for other folks? Ok, here go's... I did what most of you said ! I did remove the Bags Because I had a hard time getting that little part out for my new Bag Rails. So they were off and Thats when the light went off and figured I have these Brand new Michelin Commanders laying around so I went to work on this project today.. With a Few emails to Mr. FreeBird! I got the Job Done! (thanks) Then I went Ahead and removed Both Mufflers (tell ya why in a bit) http://www.venturerider.org/wheel/thumbnails/attachment_029.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_007.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_025.jpg Then I Used a 1 1/16" Socket and took the main bolt off http://www.venturerider.org/wheel/thumbnails/attachment_019.jpg Then Remove the Rear Brake Caliber and place it on the passenger foot rest. This is also a good time to loosen the pinch bolt on the right side. The axle will NOT slide out if you don't. http://www.venturerider.org/wheel/thumbnails/attachment_014.jpg Then undo the bolt for that swing arm thingy. http://www.venturerider.org/wheel/thumbnails/attachment_011.jpg Now this is were I was glad I did remove the Left side bag and Muffler Cuz I could not for the life of me get that darn MAIN AXLE BOLT out with out having to take my socket extension and hammer it out.. http://www.venturerider.org/wheel/thumbnails/attachment_003.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_010.jpg Here she comes! http://www.venturerider.org/wheel/thumbnails/attachment_005.jpg KEEP IN MIND THAT YOU PUT THIS WASHER BACK IN THE RIGHT ORDER WHEN PUTTING BACK TOGETHER! http://www.venturerider.org/wheel/thumbnails/attachment_008.jpg After the Shaft gets about half way is when I could pull the rest of they way on my own. http://www.venturerider.org/wheel/thumbnails/attachment_005.jpg http://www.venturerider.org/wheel/thumbnails/attachment_027.jpg Note: My bike was on a Lorin Lift. So What I did was have that rear tire about a half inch off the ground when I pulled that Axle. (worked great) http://www.venturerider.org/wheel/thumbnails/attachment_018.jpg Then I lifted just a bit more and pulled from the right side until the tire kinda fell on its own. http://www.venturerider.org/wheel/thumbnails/attachment_016.jpg Now the FUN PART! I just kept lifting http://www.venturerider.org/wheel/thumbnails/attachment_024.jpg MORE http://www.venturerider.org/wheel/thumbnails/attachment_026.jpg AND MORE http://www.venturerider.org/wheel/thumbnails/attachment_015.jpg AND MORE http://www.venturerider.org/wheel/thumbnails/attachment_017.jpg Man it was getting Scary! sheesh! http://www.venturerider.org/wheel/thumbnails/attachment_021.jpg Even with more room left the lift on my jack the tire Came right out! *VBS* PLOP! http://www.venturerider.org/wheel/thumbnails/attachment_004.jpg http://www.venturerider.org/wheel/thumbnails/attachment.jpg Put back together in reverse order ~S~ I also did this as well. Took the main rear Diff off and there was no grease on the Splines. http://www.venturerider.org/wheel/thumbnails/attachment_013.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_020.jpg http://www.venturerider.org/wheel/thumbnails/attachment_002.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_022.jpg http://www.venturerider.org/wheel/thumbnails/attachment_009.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_012.jpg http://www.venturerider.org/wheel/thumbnails/attachment_028.jpghttp://www.venturerider.org/wheel/thumbnails/attachment_006.jpg This is what my Rear Brake Pads look like at 5,100 miles. http://www.venturerider.org/wheel/thumbnails/attachment_023.jpg then I did the Front! (easy) And the lift kept the bike very stable even after the front Tire was removed.. I am impressed with the lift. When my tires get done being Mounted and Balanced I will go into the HUB and get that all greased up as well! (this was very simple after I got it all figured out and the help from reading what you Pro's had to say. Its just sometimes I need to SEE a picture to make me understand more *LOL* I hope this will help folks if needed.. I know I sure could have used something like this. ( this is on a 2K MM with 5,100 miles on her) Jeff P.S. PLEASE add any comments in case I made a mistake ! Thanks! NOTE: this Job could be done in 30 Min's with Pictures *LOL*file:///C:/VentureRider/wheel/showthread.php_files/rasberry.gif PLEASE READ ! OTHER NOTE'S BY, Denden, When you're re-assembling it... After you put the driveshaft in, put the differential on but leave the 4 nuts only finger tight. Then install the wheel and axle. Torque the axle nut to 110 ft/lbs. After the axel is torqued, THEN tighten up the 4 nuts on the differential. John Drummond, "Wrenchman" When you go to install the drive shaft a small diameter wire like an old antenna mast works great for holding the yoke up so you can slid the driveshaft in. Once the shaft makes contact with the yoke you can pull the wire out, and slid the shaft in to the yoke. This might take a try or two to get it in but works pretty well for lining up the yoke. Buz Rutan, "Naturbar" The author of the article says "I could not for the life of me get that darn MAIN AXLE BOLT out with out having to take my socket extension and hammer it out.." here is my addendum: On my 07 RSMTD - at the end of the axle shaft there is an place to use an Allen Head wrench - if you will turn it counterclockwise (loosen it) the axle shaft comes right out with no hammering (clockwise - or tightening to replace shaft)- also if you have slight pressure on the wheel assembly (i.e. tire resting on floor)while removing the axle it makes it much easier to remove. Edited May 8, 2016 by Freebird
